Harmony Audio HA-R104 Rhythm Series 10″ - Package Sub with Harmony Audio HA-A400.1 Car Class D Amp Mono 800W Sub Amplifier w/ Bass Remote and ASC DTB-2X10-QUAD-UP Dual 10″ Subwoofer Box

This Bundle Includes:

• 1 x ASC Compatible with 2019-UP Dodge Ram Quad Cab Truck DTB-2X10-QUAD-UP Dual 10" Subwoofer Box Enclosure
• 2 x Harmony Audio HA-R104 Rhythm Series 10" - Package Sub
• 1 x Harmony Audio HA-A400.1 Car Class D Amp Mono 800W Sub Amplifier w/ Bass Remote
• 1 x Harmony Audio HA-AK8 Car Stereo 8 Gauge 900W Amp Amplifier Install Kit - Nickel

Harmony Audio HA-R104 Rhythm Series 10" - Package Sub :

• 10" Rhythm Series Car Subwoofer
• Power Handling:
  • Peak: 500 watts
  • RMS: 250 watts
• Sensitivity: 86.1dB
• Frequency Response: 30Hz-300Hz
• Mounting Depth: 5 5/16"
• Mounting Cutout Diameter: 9 1/4"
• Min Sealed Box Volume (Cubic Feet): 1.0
• Max Sealed Box Volume (Cubic Feet): 2.46
• Min Vented Box Volume (Cubic Feet): 1.18
• Max Vented Box Volume (Cubic Feet): 1.97
• Single 4 Ohm

Harmony Audio HA-A400.1 Car Class D Amp Mono 800W Sub Amplifier w/ Bass Remote :

• Includes Remote Bass Control Knob with Power Indicator LED
• Includes HA-EASY Speaker Wire to RCA Adapter to Simplify Installation
• Compatible with both Aftermarket and Factory Source with DC Offset Feature
• When DC Offset Feature is used Remote Terminal becomes a 12V Output to Turn On Another Device
• Brushed Aluminum Case with Light Up Blue LED Harmony Logo
• Power and Protection Lights to Easily See Amp Status
• Specifications :
• Alloy Series Mono - 1 Channel Class D Amplifier
• Power Handling:
  • 14.4V @ 1 Ohm
    • 400 Watts RMS x 1
    • 800 Watts PEAK x 1
  • 14.4V @ 2 Ohm
    • 300 Watts RMS x 1
    • 600 Watts PEAK x 1
• Frequency Response: 10Hz-180Hz
• Signal to Noise Ratio: 95dB, A-weighted
• RCAs: Input and Full Pass Through Audio Output
• Turn On: DC Offset or 12V Remote
• Recommended External Fuse: 50A
• Recommended Wiring Power Gauge: 4 Gauge
• Dimensions: 9-3/16" Length x 6-1/8" Width x 2" Height
• User Adjustable Settings :
• Input Type: High or Low Level Signal (Selectable Switch)
  • High Level Input Sensitivity: 2.5V - 40V
  • Low Level Input Sensitivity: 90mV - 10V
• Gain: (Knob Variable)
• Low Pass Filter: 40Hz - 180Hz (Knob Variable)
• Subsonic Filter: 0Hz - 50Hz (Knob Variable)
• Frequency: 30Hz - 80Hz (Knob Variable)
• Bass Boost: 0dB - 12dB @ 50Hz (Knob Variable)

Harmony Audio HA-AK8 Car Stereo 8 Gauge 900W Amp Amplifier Install Kit - Nickel :

• 17FT Flexible Matte Blue 8GA Power Cable
• 3FT Flexible Matte Black 8GA Power Cable
• 20FT Flexible Matte Blue 16GA Speaker Wire
• 17FT Flexible Matte Gray & Black RCA Cable
• 17FT Flexible Matte Blue Remote Wire
• 6FT Split Loom
• Mini ANL Fuse Holder
• 80 Amp Mini ANL Fuse
• (2) 8GA Blue & Black 5/16" Ring Terminals
• (2) 8GA Blue & Black Spade Terminals
• (5) 16GA Blue & Black Spade Terminals
• (4) Pan Head Screws
• (10) Wire Ties

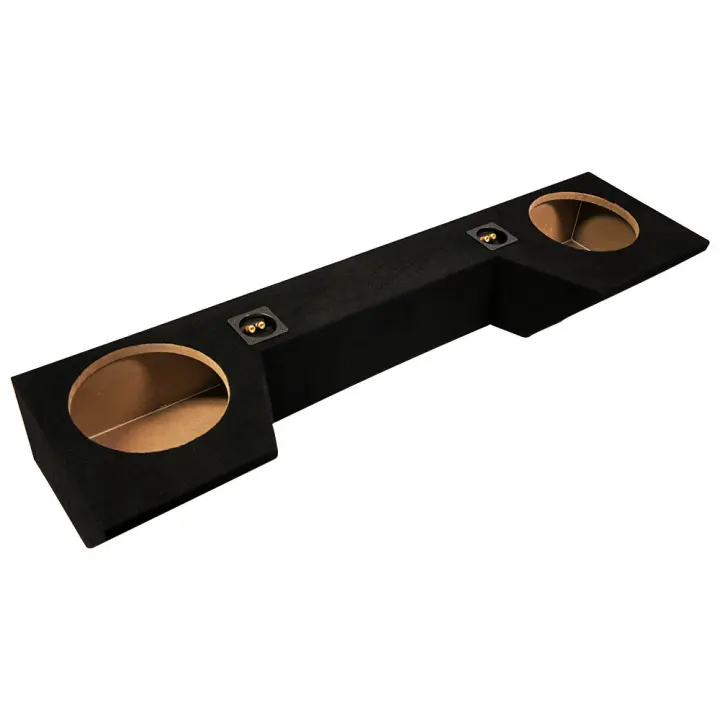

ASC Compatible with 2019-UP Dodge Ram Quad Cab Truck DTB-2X10-QUAD-UP Dual 10" Subwoofer Box Enclosure :

• 2019-UP Dodge Ram Quad Cab Truck Custom Dual 10" Subwoofer Enclosure Sub Box
• Mounting Depth: 6.5"
• Air Space: 1.04 Cubic Feet
• Constructed with High Quality MDF
• High Quality Spring Loaded Terminal Cup (Bare Wire 'up to 10GA')
• High Quality Black Carpet
• Special cutout allows for more bass to reach the cab and protects the subs from damage
• Fits both the Quad and Crew cab but does not fit the Mega Cab
