Alpine SWT-10S4 Car Audio SWT Series Sub Single 4 Ohm 700W Shallow Subwoofer with Harmony Audio HA-A1500.1 Class D Amp Mono 3000W Sub Amplifier w/ Bass Remote and ASC Dual 10″ Subwoofer Box Enclosure
Alpine SWT-10S4 Car Audio SWT Series Sub Single 4 Ohm 700W Shallow Subwoofer with Harmony Audio HA-A1500.1 Class D Amp Mono 3000W Sub Amplifier w/ Bass Remote and ASC Dual 10" Subwoofer Box Enclosure
This Bundle Includes the Following :
Specifications:

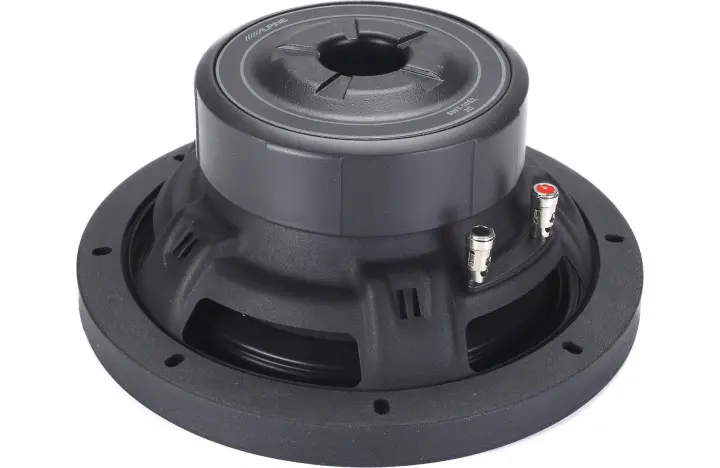

Alpine SWT-10S4 Car Audio SWT Series Sub Single 4 Ohm 700W Shallow Subwoofer:
- 10" SWT Series Single 4-ohm Shallow Mount Truck Subwoofer
- Power Handling:
- Peak: 1,000 watts
- RMS: 350 watts
- Recommended Power Range: 100W - 350W
- Poly-Mica Dust Cap & Pulp-Kevlar
- Polyurethane Foam Surround
- H.A.M.R. Surround Technology
- Spiral Cut Aluminum Former
- 65mm Voice Coil with High-Temp 4-Layer SVC Winding
- 8AWG Push Terminals
- Top-mount depth: 4-3/16"
- Mounting Diameter: 8-15/16''
- Frequency Response: 30 - 200 Hz
- Sensitivity: 84.8 dB
- Subwoofer Specifications:
- Subwoofer Series: SWT (Alpine)
- Subwoofer Size: 10"
- Peak Power Handling: 1000 watts
- RMS Power Handling: 350 watts
- Voice Coil(s): Single
- Impedance (Per Voice Coil): 4 ohms
- Voice Coil Diameter: 2.55"
- Frequency Response: 30 - 200 Hz
- Sensitivity: 85.1 dB
- Xmax (millimeters): 11 mm
- Subwoofer Design: Round / Circle
- Main Cone Color: Black
- Woofer Composition: Polypropylene-Mica
- Woofer Surround: Poly-Foam
- Subwoofer Grille: No
- Re-Cone Kit Available: No
- NOTE: This product can only ship to addresses within the USA and it's territories
Harmony Audio HA-A1500.1 Car Class D Amp Mono 3000W Sub Amplifier w/ Bass Remote :
- Includes Remote Bass Control Knob with Power Indicator LED
- Includes HA-EASY Speaker Wire to RCA Adapter to Simplify Installation
- Compatible with both Aftermarket and Factory Source with DC Offset Feature
- When DC Offset Feature is used Remote Terminal becomes a 12V Output to Turn On Another Device
- Brushed Aluminum Case with Light Up Blue LED Harmony Logo
- Power and Protection Lights to Easily See Amp Status
- Specifications :
- Alloy Series Mono - 1 Channel Class D Amplifier
- Power Handling:
- 14.4V @ 1 Ohm
- 1500 Watts RMS x 1
- 3000 Watts PEAK x 1
- 14.4V @ 2 Ohm
- 1200 Watts RMS x 1
- 2400 Watts PEAK x 1
- 14.4V @ 1 Ohm
- Frequency Response: 10Hz-180Hz
- Signal to Noise Ratio: 95dB, A-weighted
- RCAs: Input and Full Pass Through Audio Output
- Turn On: DC Offset or 12V Remote
- Recommended External Fuse: 200A
- Recommended Wiring Power Gauge: 1/0 Gauge
- Dimensions: 19-5/8" Length x 6-1/8" Width x 2" Height
- User Adjustable Settings:
- Input Type: High or Low Level Signal (Selectable Switch)
- High Level Input Sensitivity: 2.5V - 40V
- Low Level Input Sensitivity: 90mV - 10V
- Gain: (Knob Variable)
- Low Pass Filter: 40Hz - 180Hz (Knob Variable)
- Subsonic Filter: 0Hz - 50Hz (Knob Variable)
- Frequency: 30Hz - 80Hz (Knob Variable)
- Bass Boost: 0dB - 12dB @ 50Hz (Knob Variable)
Harmony Audio HA-AK0 Car Stereo 1/0 Gauge 3000W Amp Amplifier Install Kit Nickel :
- 17FT Flexible Matte Blue 1/0GA Power Cable
- 3FT Flexible Matte Black 1/0GA Power Cable
- 20FT Flexible Matte Blue 16GA Speaker Wire
- 17FT Flexible Matte Gray & Black RCA Cable
- 17FT Flexible Matte Blue Remote Wire
- 6FT Split Loom
- ANL Fuse Holder
- 250 Amp ANL Fuse
- (2) 1/0GA Blue & Black 5/16" Ring Terminals
- (2) 1/0GA Blue & Black Spade Terminals
- (5) 16GA Blue & Black Spade Terminals
- (4) Pan Head Screws
- (10) Wire Ties
ASC Compatible with 2019-UP Jeep Gladiator 2X10JEEP-GLAD Dual 10" Subwoofer Box Enclosure:
- ASC 2X10JEEP-GLAD
- Vehicle: Gladiator 2019-Up
- Mounting Depth: 4.5"
- Subwoofer Size: Double 10"
- Cutout Diameter: 9"
- Fitment: Fits in Truck Cab, Under Rear Seat
- Finish: Rugged Black Carpet
- Chambers:Separate Subwoofer Chambers
- Subwoofer Firing Direction: UP-Firing
- MDF Thickness: 5/8? Industrial Grade MDF
- Airspace (Total): 1.02 Cubic Feet
- Volume (Per Subwoofer): 0.50 Cubic Feet
