Alpine S-W10D4 Type S Series Dual 4 Ohm 1200W Peak 10″ Subwoofer with Harmony Audio HA-A1500.1 Class D Mono 3000W Sub Amplifier w/ Bass Remote and ASC DTB-2X10-CREW-UP Dual 10″ Subwoofer Box
Description
Alpine S-W10D4 Type S Series Dual 4 Ohm 1200W Peak 10" Subwoofer with Harmony Audio HA-A1500.1 Class D Mono 3000W Sub Amplifier w/ Bass Remote and ASC DTB-2X10-CREW-UP Dual 10" Subwoofer Box
Specifications
Alpine S-W10D4 Type S Series Dual 4 Ohm 1200W Peak 10" Subwoofer with Harmony Audio HA-A1500.1 Class D Mono 3000W Sub Amplifier w/ Bass Remote and ASC DTB-2X10-CREW-UP Dual 10" Subwoofer Box
SKU: 2X10DTB-CREW-19UP-PACK6
This Bundle Includes:
- 1 x ASC Compatible with 2019-UP Dodge Ram Crew Cab Truck DTB-2X10-CREW-UP Dual 10" Subwoofer Box Enclosure
- 2 x Alpine S-W10D4 Car Audio Type S Series Sub Dual 4 Ohm 1200W Peak 10" Subwoofer
- 1 x Harmony Audio HA-A1500.1 Car Class D Amp Mono 3000W Sub Amplifier w/ Bass Remote
- 1 x Harmony Audio HA-AK0 Car Stereo 1/0 Gauge 3000W Amp Amplifier Install Kit Nickel

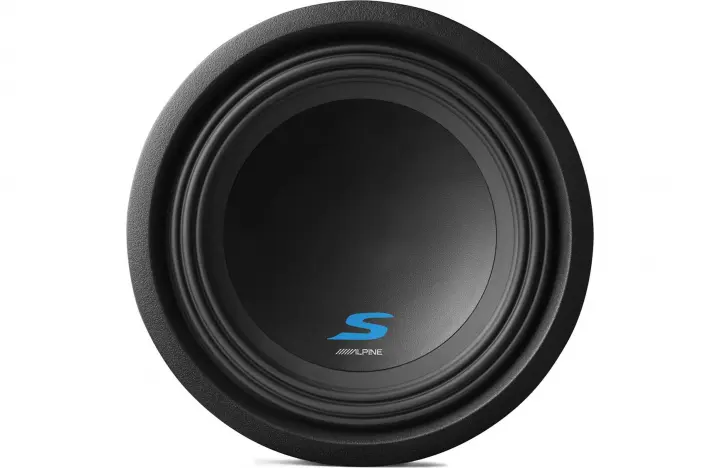

Alpine S-W10D4 Car Audio Type S Series Sub Dual 4 Ohm 1200W Peak 10" Subwoofer :
- 10" 4 ohm S-Series (Type-S) Subwoofer
- Power Handling:
- Peak: 1800 watts
- RMS: 600 watts
- Recommended power range: 250- 600W RMS
- Pulp/Kevlar Cone
- High Amplitude Multi-Roll (HAMR) Surround
- Progressive Spider with Reinforced Layer Tinsel Leads
- Airflow Optimized Dual Flare Pole Vent
- High Strength Steel Frame Basket
- 8 AWG Push Terminals with VC Configuration Jumpers
- Dual Voice Coil
- High Grade Strontium Ferrite Magnets
- Top-mount depth: 4-11/16"
- Cutout diameter: 8-13/16
- Frequency Response: 26- 200Hz
- Sensitivity: 86.4dB
- Resonance Frequency (Fs): 34 Hz
- NOTE: This product can only ship to addresses within the USA and it's territories
Harmony Audio HA-A1500.1 Car Class D Amp Mono 3000W Sub Amplifier w/ Bass Remote :
- Includes Remote Bass Control Knob with Power Indicator LED
- Includes HA-EASY Speaker Wire to RCA Adapter to Simplify Installation
- Compatible with both Aftermarket and Factory Source with DC Offset Feature
- When DC Offset Feature is used Remote Terminal becomes a 12V Output to Turn On Another Device
- Brushed Aluminum Case with Light Up Blue LED Harmony Logo
- Power and Protection Lights to Easily See Amp Status
- Specifications :
- Alloy Series Mono - 1 Channel Class D Amplifier
- Power Handling:
- 14.4V @ 1 Ohm
- 1500 Watts RMS x 1
- 3000 Watts PEAK x 1
- 14.4V @ 2 Ohm
- 1200 Watts RMS x 1
- 2400 Watts PEAK x 1
- 14.4V @ 1 Ohm
- Frequency Response: 10Hz-180Hz
- Signal to Noise Ratio: 95dB, A-weighted
- RCAs: Input and Full Pass Through Audio Output
- Turn On: DC Offset or 12V Remote
- Recommended External Fuse: 200A
- Recommended Wiring Power Gauge: 1/0 Gauge
- Dimensions: 19-5/8" Length x 6-1/8" Width x 2" Height
- User Adjustable Settings:
- Input Type: High or Low Level Signal (Selectable Switch)
- High Level Input Sensitivity: 2.5V - 40V
- Low Level Input Sensitivity: 90mV - 10V
- Gain: (Knob Variable)
- Low Pass Filter: 40Hz - 180Hz (Knob Variable)
- Subsonic Filter: 0Hz - 50Hz (Knob Variable)
- Frequency: 30Hz - 80Hz (Knob Variable)
- Bass Boost: 0dB - 12dB @ 50Hz (Knob Variable)
Harmony Audio HA-AK0 Car Stereo 1/0 Gauge 3000W Amp Amplifier Install Kit Nickel :
- 17FT Flexible Matte Blue 1/0GA Power Cable
- 3FT Flexible Matte Black 1/0GA Power Cable
- 20FT Flexible Matte Blue 16GA Speaker Wire
- 17FT Flexible Matte Gray & Black RCA Cable
- 17FT Flexible Matte Blue Remote Wire
- 6FT Split Loom
- ANL Fuse Holder
- 250 Amp ANL Fuse
- (2) 1/0GA Blue & Black 5/16" Ring Terminals
- (2) 1/0GA Blue & Black Spade Terminals
- (5) 16GA Blue & Black Spade Terminals
- (4) Pan Head Screws
- (10) Wire Ties
ASC Compatible with 2019-UP Dodge Ram Crew Cab Truck DTB-2X10-CREW-UP Dual 10" Subwoofer Box Enclosure :
- 2019-UP Dodge Ram Crew Cab Truck Custom Dual 10" Subwoofer Enclosure Sub Box
- Mounting Depth: 7"
- Air Space: 1.75 Cubic Feet per Sub
- Constructed with High Quality MDF
- High Quality Spring Loaded Terminal Cup (Bare Wire 'up to 10GA')
- High Quality Black Carpet
- Special cutout allows for more bass to reach the cab and protects the subs from damage
- Fits both the Quad and Crew cab but does not fit the Mega Cab
This item is New
