Compatible with 1999-2006 Chevy Silverado Ext Cab Truck Harmony F124 Dual 12″ Sub Box & CXA800.1
Description
Compatible with 1999-2006 Chevy Silverado Ext Cab Truck Harmony F124 Dual 12" Sub Box & CXA800.1
Specifications
Compatible with 1999-2006 Chevy Silverado Ext Cab Truck Harmony F124 Dual 12" Sub Box & CXA800.1
SKU: HA-SUB-PACKAGE186

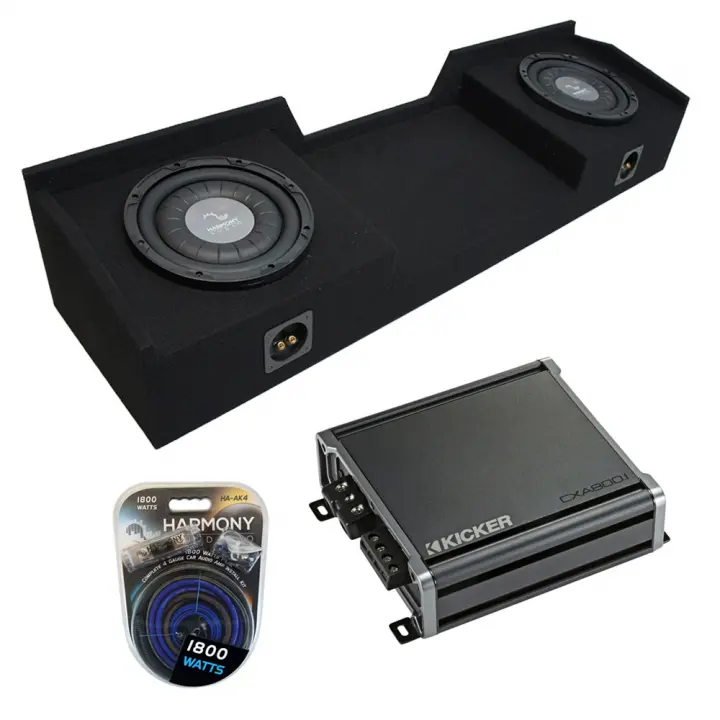

This Package Includes the Following Items:
- 1 x Chevy Silverado 1999-06 Ext Cab Truck Dual 12 Subwoofer Enclosure Sub Box Custom
- 2 x Harmony Audio HA-F124 Car Stereo Flatline Series 12" Sub 800W Single 4 Ohm Subwoofer
- 1 x Kicker 46CXA8001 Car Audio Class D Amp Mono 1600W Peak Sub Amplifier CXA800.1
- 1 x Harmony Audio HA-AK4 Car Stereo Complete 4 Gauge 1800W Amp Amplifier Install Kit - Nickel
Chevy Silverado 1999-06 Ext Cab Truck Dual 12 Subwoofer Enclosure Sub Box Custom:
- Air Space: 0.95 Cubic Feet
- Mounting Depth: 5-3/4"
- Sealed Enclosure
- Dimensions: Width 51" x Front Height 9-3/4" x Rear Height 7-1/4" x Depth 13-1/2"
- 1999 - 2006 Chevy Silverado Extended Cab 1500, 2500, & 3500
- 1999 - 2006 GMC Sierra Extended Cab 1500, 2500, & 3500
- 12" Flatline Series Car Subwoofer
- Power Handling:
- Peak: 800 watts
- RMS: 400 watts
- Sensitivity: 87.3dB
- Frequency Response: 25Hz-1.2Hz
- Mounting Depth: 4 1/2"
- Mounting Cutout Diameter: 11 1/8"
- Min Sealed Box Volume (Cubic Feet): 0.55
- Max Sealed Box Volume (Cubic Feet): 3
- Min Vented Box Volume (Cubic Feet): 1.68
- Max Vented Box Volume (Cubic Feet): 2.25
- Single 4 Ohm
- Polypropylene Injection Molded Cone
- Aluminum Cone Cap
- Butyl Rubber Surround
- Tinsel Leads Woven into Spider
- 2" Copper Voice Coil
- Steel Basket
- Ferrite Magnet
- Kapton Former Material
- Efficient Class-D amplifier - 1 Ohm Stable
- Three-second turn-on/off delay to eliminate unwanted interference
- Variable 12dB crossovers provides control to dial in perfect sound
- KickEQ?äó 6dB variable bass boost for those additional low frequencies
- 24dB subsonic filter for protection from potentially damaging frequencies
- FIT+ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
- Accepts up to 40-volt input signal
- Small footprint for easier installation
- Vertical mounting hardware included for another unique look
- Power Handling:
- 600 Watts x 1 @ 2 Ohm RMS
- 1200 Watts x 1 @ 2 Ohm PEAK
- 800 Watts x 1 @ 1 Ohm RMS
- 1600 Watts x 1 @ 1 Ohm PEAK
- Frequency Response: 25Hz - 200Hz
- Signal to Noise Ratio: 95dB
- Input Sensitivity:
- High level 250mV-10V
- Low level 125mV-5V
- Active Crossover: 12dB/octave, variable 50-200Hz, low pass only
- Subsonic Filter: 24dB/octave high-pass fixed @ 25Hz
- Kicker EQ Boost: Variable to +12dB, centered @ 40Hz
- Bass Remote Compatible: CXRC (Not Included)
- Dimensions: 8-1/8" Length x 2-3/8" Height x 7-3/16" Width
- 17FT Flexible Matte Blue 4GA Power Cable
- 3FT Flexible Matte Black 4GA Power Cable
- 20FT Flexible Matte Blue 16GA Speaker Wire
- 17FT Flexible Matte Gray & Black RCA Cable
- 17FT Flexible Matte Blue Remote Wire
- 6FT Split Loom
- ANL Fuse Holder
- 150 Amp ANL Fuse
- (2) 4GA Blue & Black 5/16" Ring Terminals
- (2) 4GA Blue & Black Spade Terminals
- (5) 16GA Blue & Black Spade Terminals
- (4) Pan Head Screws
- (10) Wire Ties
Harmony Audio HA-F124 Car Stereo Flatline Series 12" Sub 800W Single 4 Ohm Subwoofer:
Specifications:
Features:
Kicker 46CXA8001 Car Audio Class D Amp Mono 1600W Peak Sub Amplifier CXA800.1:
Features
Specifications
Harmony Audio HA-AK4 Car Stereo Complete 4 Gauge 1800W Amp Amplifier Install Kit - Nickel:
Specifications:
This item is New
HiFiSoundConnection Warranty: 90-Days
Proposition 65 Warning for California Consumers
WARNING: This product can expose you to chemicals which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
