Universal Car Stereo Slotted S Port Dual 15 Harmony R154 Sub Box & CX1200.1

$531.95
Was $719.99 Save: $188.04 (26%)
Out of Stock see details
FREE SHIPPING
SKU: HA-SUB-PACKAGE922
1-877-275-4434
Description

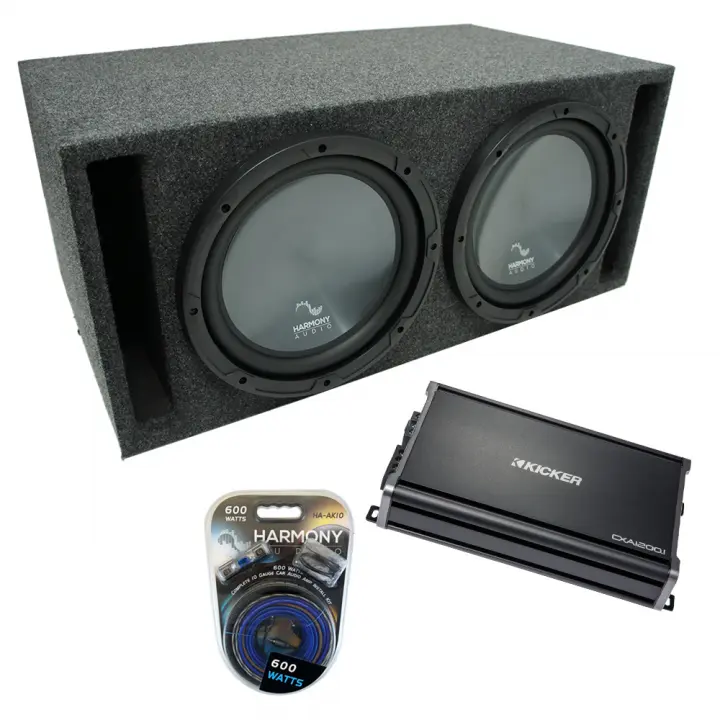

Universal Car Stereo Slotted S Port Dual 15 Harmony R154 Sub Box & CX1200.1
Specifications
  • Universal Car Stereo Slotted S Port Dual 15 Harmony R154 Sub Box & CX1200.1
  • SKU: HA-SUB-PACKAGE922
  • This Package Includes the Following Items:

    • 1 x CustomCar Audio Dual 15" Slot Ported Sub Box
    • 2 x Harmony Audio HA-R154 Car Stereo Rhythm Series 15" Sub 900W Single 4 Ohm Subwoofer
    • 1 x Kicker 43CXA12001 Mono Amp CX Series CXA1200.1 Class D 1200-Watt Car Audio Subwoofer Amplifier - Limited Stock
    • 1 x Harmony Audio HA-AK0 Car Stereo Complete 1/0 Gauge 3000W Amp Amplifier Install Kit - Nickel

    CustomCar Audio Dual 15" Slot Ported Sub Box:

    Features:
    • Dual 15" Vented Sub Box
      • Mounting Depth: 16"
      • Air Space: 3.60 Cubic Feet Per Sub
      • Vented Enclosure
      • Dimensions: Width 42-1/4" x Height 19" x Depth 22"
    • Vented design allows for maximum output
    • Constructed with High Quality MDF
    • High Quality Binding Terminal Cup (Accepts Banana Terminal Plugs OR Bare Wire 'up to 10GA')
    • High Quality Gray Carpet

    Harmony Audio HA-R154 Car Stereo Rhythm Series 15" Sub 900W Single 4 Ohm Subwoofer:

    Specifications:

    • 15" Rhythm Series Car Subwoofer
    • Power Handling:
      • Peak: 900 watts
      • RMS: 450 watts
    • Sensitivity: 90.4dB
    • Frequency Response: 25Hz-1.2kHz
    • Mounting Depth: 7 11/16"
    • Mounting Cutout Diameter: 13 7/8"
    • Min Sealed Box Volume (Cubic Feet): 2.22
    • Max Sealed Box Volume (Cubic Feet): 5.15
    • Min Vented Box Volume (Cubic Feet): 2.89
    • Max Vented Box Volume (Cubic Feet): 4.19
    • Single 4 Ohm

    Features:

    • Metallic Polypropylene Injection Molded Cone
    • Butyl Rubber Surround
    • Tinsel Leads Woven into Spider
    • 2" Copper Voice Coil
    • Steel Basket
    • Ferrite Magnet
    • Kapton Former Material


    Kicker 43CXA12001 Mono Amp CX Series CXA1200.1 Class D 1200-Watt Car Audio Subwoofer Amplifier - Limited Stock:

    This item is Factory Certified Refurbished

  • Kicker CX Series CXA12001.1
  • Class-D 2-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 600 watts x 1 chan.
    • 2 ohms: 1200 watts x 1 chan.
  • Total power output: 2400 watts
  • Pulse Width Modulated MOSFET power supply
  • Kicker CXARC wired remote bass level control available and sold separately
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Speaker-level (high-level) inputs via RCA
    • Requires Kicker KISL, available and sold separately
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Frequency Response: 25 - 200Hz
  • Signal to Noise Ration: >95dB
  • Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
  • Fixed Subsonic Filter @ 25hz, 24db/octave
  • 4 gauge power and ground wiring is recommended for installation
  • Dimensions: 7-3/16"W x 12-1/16"L x 2-3/8"H
  • ????ç

    Warranty Info:

    • We are an Authorized Kicker Dealer.
    • 1-Year Manufacturer's Warranty
    • All Manufacturer Warranties are handled through HiFiSoundConnection (1-877-275-4434)
    HiFiSoundConnection - Authorized Kicker Dealer

    Harmony Audio HA-AK0 Car Stereo Complete 1/0 Gauge 3000W Amp Amplifier Install Kit - Nickel:

    Specifications:

    • 17FT Flexible Matte Blue 1/0GA Power Cable
    • 3FT Flexible Matte Black 1/0GA Power Cable
    • 20FT Flexible Matte Blue 16GA Speaker Wire
    • 17FT Flexible Matte Gray & Black RCA Cable
    • 17FT Flexible Matte Blue Remote Wire
    • 6FT Split Loom
    • ANL Fuse Holder
    • 250 Amp ANL Fuse
    • (2) 1/0GA Blue & Black 5/16" Ring Terminals
    • (2) 1/0GA Blue & Black Spade Terminals
    • (5) 16GA Blue & Black Spade Terminals
    • (4) Pan Head Screws
    • (10) Wire Ties

  • This item is Refurbished
  • HiFiSoundConnection Warranty: 90-Days
