Harmony Audio HA-C104 Competition Loaded 10″ Sub 2000W Slot Ported Sub Box
Description
Harmony Audio HA-C104 Competition Loaded 10" Sub 2000W Slot Ported Sub Box
Specifications
Harmony Audio HA-C104 Competition Loaded 10" Sub 2000W Slot Ported Sub Box
SKU: HA-CARBON-10
This Package Includes the Following Items:
- 1 x Custom Single 10" Vented Sub Enclosure Box
- 1 x Harmony Audio HA-C104 Car Stereo Competition Carbon 10" Sub 2000W Dual 4 Ohm Subwoofer New

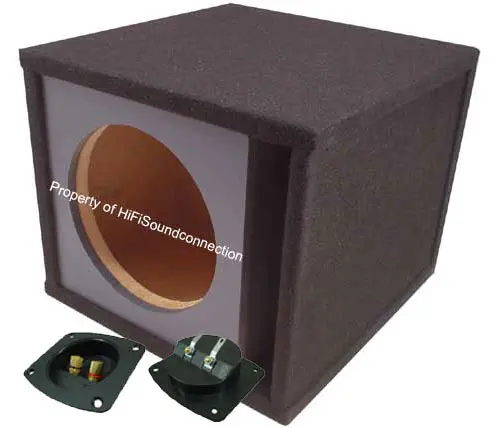

Custom Single 10" Vented Sub Enclosure Box:
Features:- Single 10" Vented Sub Box Enclosure
- Mounting Depth: 10-3/4"
- Air Space: 1.40 Cubic Feet
- Vented Enclosure
- Dimensions: Width 16" x Height 13-1/2" x Depth 16-3/4"
- Constructed with High Quality MDF
- High Quality Binding Terminal Cup (Accepts Banana Terminal Plugs OR Bare Wire 'up to 10GA')
- High Quality Black Carpet
- Removable Paint-able Face for a Custom Look

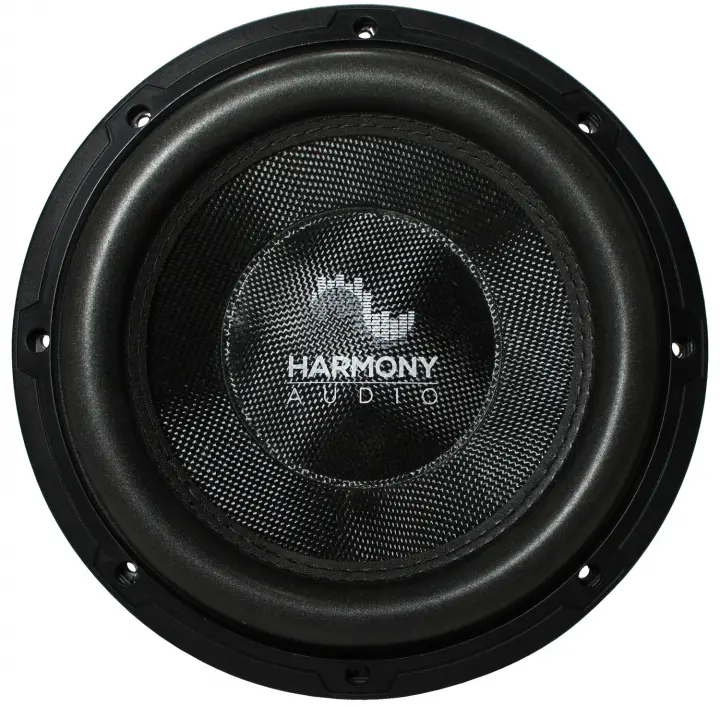

Harmony Audio HA-C104 Car Stereo Competition Carbon 10" Sub 2000W Dual 4 Ohm Subwoofer New:
Specifications:
- 10" Carbon Series Car Subwoofer
- Power Handling:
- Peak: 2000 watts
- RMS: 1000 watts
- Sensitivity: 85.7dB
- Frequency Response: 45Hz-300Hz
- Mounting Depth: 6-5/8"
- Mounting Cutout Diameter: 9-5/16"
- Min Sealed Box Volume (Cubic Feet): 0.99
- Max Sealed Box Volume (Cubic Feet): 1.94
- Min Vented Box Volume (Cubic Feet): 1.4
- Max Vented Box Volume (Cubic Feet): 2.47
- Magnet Weight: 202 Ounces
- 2.5" Copper Voice Coil
- Dual 4 Ohm
Features:
- Fiber Lightweight Cone
- Stitched High Roll Foam Surround
- Tinsel Leads Woven into Spider
- Die-Cast Aluminum Basket
- High Flux Ferrite Magnet
Detailed Specifications:
- Voice Coil Diameter: 65.5mm
- Voice Coil Height: 50mm
- HE Magnetic Gap Height: 15mm
- Voice Coil Bobbin: Black Aluminum
- Xmax: 17.5mm
- Magnet Layers: 4
- Cms (Suspension Compliance): 0.108
- Qms (Mechanical Q Factor): 4.3
- Qes (Electrical Q Factor): 0.52
- Qts (Total Q Factor): 0.5
- Mms (Moving Mass): 211.4
- Vas (Equivalent Volume of Compliance): 10.3 L
- Rs (Resonant Frequency): 45 Hz
- SD (Effective Piston Area): 363.05 cm2
This item is New
