Compatible with 2002-2013 Cadillac Escalade EXT Underseat Harmony F104 Dual 10 Sub Box & Harmony HA-A800.1
Description
Compatible with 2002-2013 Cadillac Escalade EXT Underseat Harmony F104 Dual 10 Sub Box & Harmony HA-A800.1
Specifications
Compatible with 2002-2013 Cadillac Escalade EXT Underseat Harmony F104 Dual 10 Sub Box & Harmony HA-A800.1
SKU: HA-SUB-PACKAGE559-H
This Package Includes the Following Items:
- 1 x 2002-2013 Chevy Avalanche Car Audio Custom Dual 10" Subwoofer Enclosure Sub Box
- 2 x Harmony Audio HA-F104 Car Stereo Flatline Series 10" Sub 700W Single 4 Ohm Subwoofer
- 1 x Harmony Audio HA-A800.1 Car Stereo Class D Amp Mono 1600 Watt Subwoofer Amplifier - 1 Ohm Stable - Includes Bass Remote
- 1 x Harmony Audio HA-AK4 Car Stereo Complete 4 Gauge 1800W Amp Amplifier Install Kit - Nickel
2002-2013 Chevy Avalanche Car Audio Custom Dual 10" Subwoofer Enclosure Sub Box:
Features:- 2002-2013 Chevy Avalanche Car Audio Custom Dual 10" Subwoofer Enclosure
- Air Space: 0.48 Cubic Feet per Sub
- Mounting Depth: 4 1/2"
- Sealed Enclosure
- Dimensions: Width 48" x Height 6" x Depth 16-3/4"
- Constructed with High Quality MDF
- High Quality Spring Loaded Terminal Cups (Bare Wire 'up to 10GA')
- High Quality Black Carpet
- Fits under rear seat, seat must be able to fold forward for box to fit
- Subwoofers fire up towards the rear seat
- 2002-2013 Chevy Avalanche

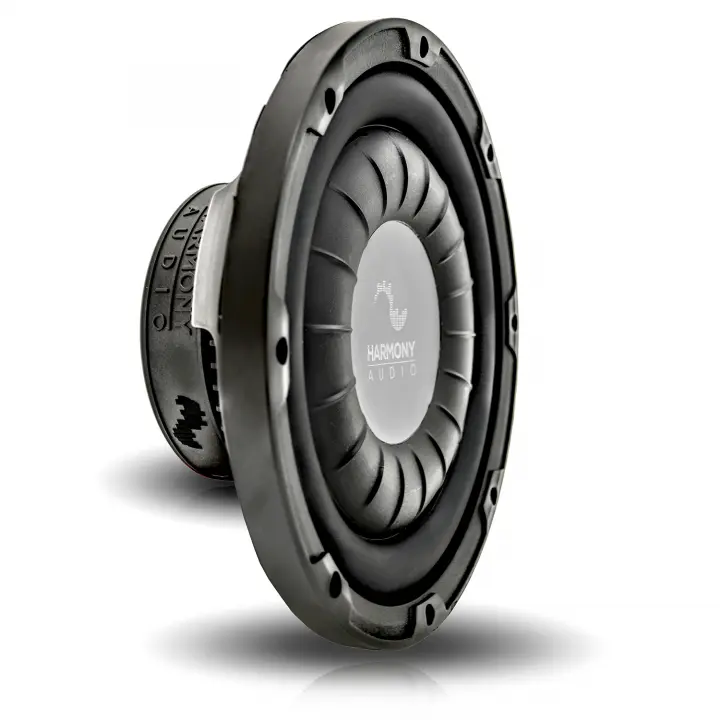

Harmony Audio HA-F104 Car Stereo Flatline Series 10" Sub 700W Single 4 Ohm Subwoofer:
Specifications:
- 10" Flatline Series Car Subwoofer
- Power Handling:
- Peak: 700 watts
- RMS: 350 watts
- Sensitivity: 87.1dB
- Frequency Response: 25Hz-1.5Hz
- Mounting Depth: 4 1/16"
- Mounting Cutout Diameter: 9 1/16"
- Min Sealed Box Volume (Cubic Feet): 0.40
- Max Sealed Box Volume (Cubic Feet): 2.03
- Min Vented Box Volume (Cubic Feet): 1.1
- Max Vented Box Volume (Cubic Feet): 1.81
- Single 4 Ohm
Features:
- Polypropylene Injection Molded Cone
- Aluminum Cone Cap
- Butyl Rubber Surround
- Tinsel Leads Woven into Spider
- 2" Copper Voice Coil
- Steel Basket
- Ferrite Magnet
- Kapton Former Material
Harmony Audio HA-A800.1 Car Stereo Class D Amp Mono 1600 Watt Subwoofer Amplifier - 1 Ohm Stable - Includes Bass Remote:
Specifications:
- Alloy Series Mono - 1 Channel Class D Amplifier
- Power Handling:
- 14.4V @ 1 Ohm
- 800 Watts RMS x 1
- 1600 Watts PEAK x 1
- 14.4V @ 2 Ohm
- 600 Watts RMS x 1
- 1200 Watts PEAK x 1
- 14.4V @ 1 Ohm
- Frequency Response: 10Hz-180Hz
- Signal to Noise Ratio: 95dB, A-weighted
- RCAs: Input and Full Pass Through Audio Output
- Turn On: DC Offset or 12V Remote
- Recommended External Fuse: 100A
- Recommended Wiring Power Gauge: 1/0 Gauge
- Dimensions: 12-3/8" Width x 6-1/8" Width x 2" Height
User Adjustable Settings:
- Input Type: High or Low Level Signal (Selectable Switch)
- High Level Input Sensitivity: 2.5V - 40V
- Low Level Input Sensitivity: 90mV - 10V
- Gain: (Knob Variable)
- Low Pass Filter: 40Hz - 180Hz (Knob Variable)
- Subsonic Filter: 0Hz - 50Hz (Knob Variable)
- Frequency: 30Hz - 80Hz (Knob Variable)
- Bass Boost: 0dB - 12dB @ 50Hz (Knob Variable)
Features:
- Includes Remote Bass Control Knob with Power Indicator LED
- Includes HA-EASY Speaker Wire to RCA Adapter to Simplify Installation
- Compatible with both Aftermarket and Factory Source with DC Offset Feature
- When DC Offset Feature is used Remote Terminal becomes a 12V Output to Turn On Another Device
- Brushed Aluminum Case with Light Up Blue LED Harmony Logo
- Power and Protection Lights to Easily See Amp Status
Harmony Audio HA-AK4 Car Stereo Complete 4 Gauge 1800W Amp Amplifier Install Kit - Nickel:
Specifications:
- 17FT Flexible Matte Blue 4GA Power Cable
- 3FT Flexible Matte Black 4GA Power Cable
- 20FT Flexible Matte Blue 16GA Speaker Wire
- 17FT Flexible Matte Gray & Black RCA Cable
- 17FT Flexible Matte Blue Remote Wire
- 6FT Split Loom
- ANL Fuse Holder
- 150 Amp ANL Fuse
- (2) 4GA Blue & Black 5/16" Ring Terminals
- (2) 4GA Blue & Black Spade Terminals
- (5) 16GA Blue & Black Spade Terminals
- (4) Pan Head Screws
- (10) Wire Ties
