Free shipping to 48 States. Ships same day if ordered before 2pm CST. See details...

Compatible with 2002-2013 Cadillac Escalade EXT Underseat Alpine Type S S-W10D2 Dual 10 Sub Box Enclosure with Harmony HA-A800.1 Amplifier & 4GA Amp Kit

$474.95
Was $624.95 Save: $150.00 (24%)
In Stock see details
SKU: ALPINE-PACK67A-AMP-H

Quantity
FREE SHIPPING
1-877-275-4434
Description
Compatible with 2002-2013 Cadillac Escalade EXT Underseat Alpine Type S S-W10D2 Dual 10 Sub Box Enclosure with Harmony HA-A800.1 Amplifier & 4GA Amp Kit
Specifications
  • Compatible with 2002-2013 Cadillac Escalade EXT Underseat Alpine Type S S-W10D2 Dual 10 Sub Box Enclosure with Harmony HA-A800.1 Amplifier & 4GA Amp Kit
  • SKU: ALPINE-PACK67A-AMP-H
  • This Package Includes the Following Items:

    • 1 x Harmony Audio HA-A800.1 Car Stereo Class D Amp Mono 1600 Watt Subwoofer Amplifier - 1 Ohm Stable - Includes Bass Remote
    • 1 x Harmony Audio HA-AK4 Car Stereo Complete 4 Gauge 1800W Amp Amplifier Install Kit - Nickel
    • 2 x Alpine S-W10D2 Car Audio Type S Series Sub Dual 2 Ohm 1200W Peak 10" Subwoofer
    • 1 x 2002-2013 Chevy Avalanche Car Audio Custom Dual 10" Subwoofer Enclosure Sub Box

    Harmony Audio HA-A800.1 Car Stereo Class D Amp Mono 1600 Watt Subwoofer Amplifier - 1 Ohm Stable - Includes Bass Remote:

    Specifications:

    • Alloy Series Mono - 1 Channel Class D Amplifier
    • Power Handling:
      • 14.4V @ 1 Ohm
        • 800 Watts RMS x 1
        • 1600 Watts PEAK x 1
      • 14.4V @ 2 Ohm
        • 600 Watts RMS x 1
        • 1200 Watts PEAK x 1
    • Frequency Response: 10Hz-180Hz
    • Signal to Noise Ratio: 95dB, A-weighted
    • RCAs: Input and Full Pass Through Audio Output
    • Turn On: DC Offset or 12V Remote
    • Recommended External Fuse: 100A
    • Recommended Wiring Power Gauge: 1/0 Gauge
    • Dimensions: 12-3/8" Width x 6-1/8" Width x 2" Height

    User Adjustable Settings:

    • Input Type: High or Low Level Signal (Selectable Switch)
      • High Level Input Sensitivity: 2.5V - 40V
      • Low Level Input Sensitivity: 90mV - 10V
    • Gain: (Knob Variable)
    • Low Pass Filter: 40Hz - 180Hz (Knob Variable)
    • Subsonic Filter: 0Hz - 50Hz (Knob Variable)
    • Frequency: 30Hz - 80Hz (Knob Variable)
    • Bass Boost: 0dB - 12dB @ 50Hz (Knob Variable)

    Features:

    • Includes Remote Bass Control Knob with Power Indicator LED
    • Includes HA-EASY Speaker Wire to RCA Adapter to Simplify Installation
    • Compatible with both Aftermarket and Factory Source with DC Offset Feature
    • When DC Offset Feature is used Remote Terminal becomes a 12V Output to Turn On Another Device
    • Brushed Aluminum Case with Light Up Blue LED Harmony Logo
    • Power and Protection Lights to Easily See Amp Status

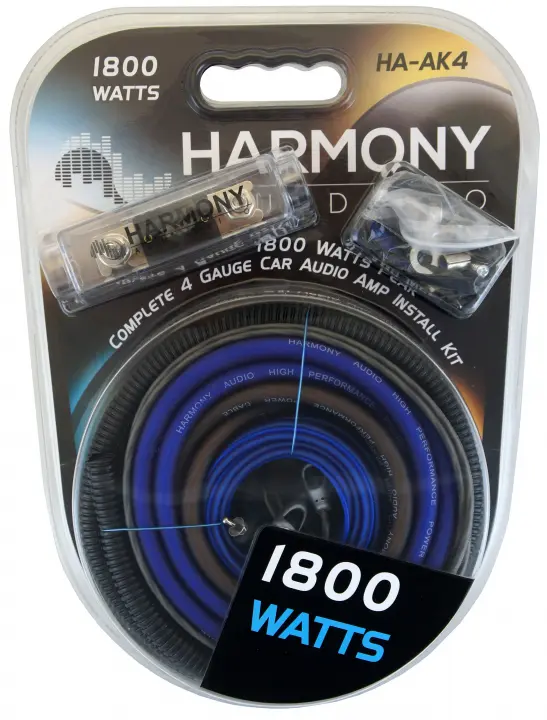

    Harmony Audio HA-AK4 Car Stereo Complete 4 Gauge 1800W Amp Amplifier Install Kit - Nickel:

    Specifications:

    • 17FT Flexible Matte Blue 4GA Power Cable
    • 3FT Flexible Matte Black 4GA Power Cable
    • 20FT Flexible Matte Blue 16GA Speaker Wire
    • 17FT Flexible Matte Gray & Black RCA Cable
    • 17FT Flexible Matte Blue Remote Wire
    • 6FT Split Loom
    • ANL Fuse Holder
    • 150 Amp ANL Fuse
    • (2) 4GA Blue & Black 5/16" Ring Terminals
    • (2) 4GA Blue & Black Spade Terminals
    • (5) 16GA Blue & Black Spade Terminals
    • (4) Pan Head Screws
    • (10) Wire Ties


    Alpine S-W10D2 Car Audio Type S Series Sub Dual 2 Ohm 1200W Peak 10" Subwoofer:

  • General Features:
    • 10" 2 ohm S-Series (Type-S) Subwoofer
    • Power Handling:
    • Peak: 1800 watts
    • RMS: 600 watts
    • Recommended power range: 250- 600W RMS
    • Pulp/Kevlar Cone
    • High Amplitude Multi-Roll (HAMR) Surround
    • Progressive Spider with Reinforced Layer Tinsel Leads
    • Airflow Optimized Dual Flare Pole Vent
    • High Strength Steel Frame Basket
    • 8 AWG Push Terminals with VC Configuration Jumpers
    • Dual Voice Coil
    • High Grade Strontium Ferrite Magnets
    • Top-mount depth: 4-11/16"
    • Cutout diameter: 8-13/16
    • Frequency Response: 26- 200Hz
    • Sensitivity: 86.4dB
    • Resonance Frequency (Fs): 33 Hz

  • 2002-2013 Chevy Avalanche Car Audio Custom Dual 10" Subwoofer Enclosure Sub Box:

    Features:
    • 2002-2013 Chevy Avalanche Car Audio Custom Dual 10" Subwoofer Enclosure
      • Air Space: 0.48 Cubic Feet per Sub
      • Mounting Depth: 4 1/2"
      • Sealed Enclosure
      • Dimensions: Width 48" x Height 6" x Depth 16-3/4"
    • Constructed with High Quality MDF
    • High Quality Spring Loaded Terminal Cups (Bare Wire 'up to 10GA')
    • High Quality Black Carpet
    • Fits under rear seat, seat must be able to fold forward for box to fit
    • Subwoofers fire up towards the rear seat
    This box fits:
    • 2002-2013 Chevy Avalanche


    Alpine - Authorized Dealer

  • This item is New
  • 1-Year Manufacturer's Warranty

Proposition 65 Warning for California Consumers

WARNING: This product can expose you to chemicals which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
