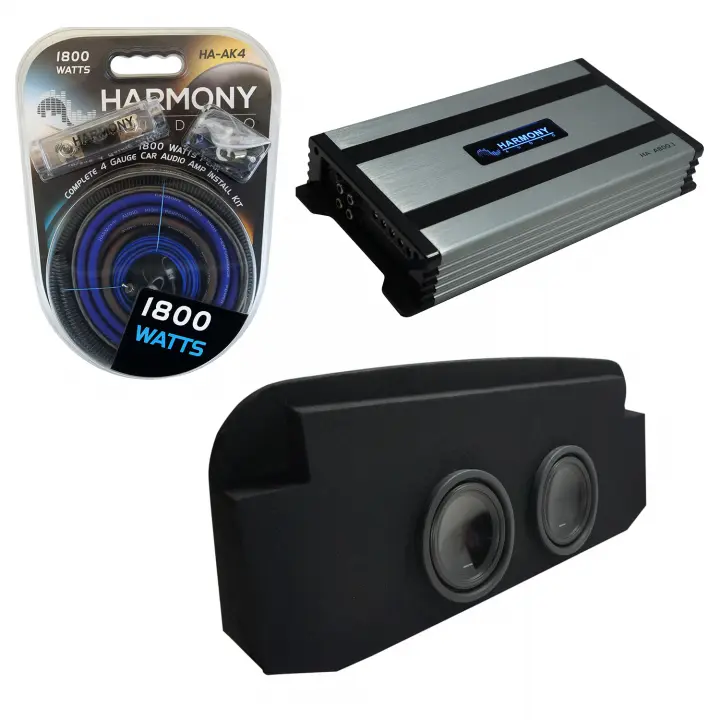

Compatible with 2002-2013 Cadillac Escalade EXT Alpine SWT-10S4 Dual 10″ Sub Box Enclosure with Harmony HA-A800.1 Amplifier & 4GA Amp Kit
- Compatible with 2002-2013 Cadillac Escalade EXT Alpine SWT-10S4 Dual 10″ Sub Box Enclosure with Harmony HA-A800.1 Amplifier & 4GA Amp Kit
- SKU: ALPINE-PACK233A-AMP-H
- 1 x Harmony Audio HA-A800.1 Car Stereo Class D Amp Mono 1600 Watt Subwoofer Amplifier - 1 Ohm Stable - Includes Bass Remote
- 1 x Harmony Audio HA-AK4 Car Stereo Complete 4 Gauge 1800W Amp Amplifier Install Kit - Nickel
- 2 x Alpine SWT-10S4 Car Audio SWT Series Sub Single 4 Ohm 700W Shallow Subwoofer
- 1 x Chevy Avalanche 2002-2013 Custom Fit Sub Box Enclosure Dual 10"
- Alloy Series Mono - 1 Channel Class D Amplifier
- Power Handling:
- 14.4V @ 1 Ohm
- 800 Watts RMS x 1
- 1600 Watts PEAK x 1
- 14.4V @ 2 Ohm
- 600 Watts RMS x 1
- 1200 Watts PEAK x 1
- 14.4V @ 1 Ohm
- Frequency Response: 10Hz-180Hz
- Signal to Noise Ratio: 95dB, A-weighted
- RCAs: Input and Full Pass Through Audio Output
- Turn On: DC Offset or 12V Remote
- Recommended External Fuse: 100A
- Recommended Wiring Power Gauge: 1/0 Gauge
- Dimensions: 12-3/8" Width x 6-1/8" Width x 2" Height
- Input Type: High or Low Level Signal (Selectable Switch)
- High Level Input Sensitivity: 2.5V - 40V
- Low Level Input Sensitivity: 90mV - 10V
- Gain: (Knob Variable)
- Low Pass Filter: 40Hz - 180Hz (Knob Variable)
- Subsonic Filter: 0Hz - 50Hz (Knob Variable)
- Frequency: 30Hz - 80Hz (Knob Variable)
- Bass Boost: 0dB - 12dB @ 50Hz (Knob Variable)
- Includes Remote Bass Control Knob with Power Indicator LED
- Includes HA-EASY Speaker Wire to RCA Adapter to Simplify Installation
- Compatible with both Aftermarket and Factory Source with DC Offset Feature
- When DC Offset Feature is used Remote Terminal becomes a 12V Output to Turn On Another Device
- Brushed Aluminum Case with Light Up Blue LED Harmony Logo
- Power and Protection Lights to Easily See Amp Status
- 17FT Flexible Matte Blue 4GA Power Cable
- 3FT Flexible Matte Black 4GA Power Cable
- 20FT Flexible Matte Blue 16GA Speaker Wire
- 17FT Flexible Matte Gray & Black RCA Cable
- 17FT Flexible Matte Blue Remote Wire
- 6FT Split Loom
- ANL Fuse Holder
- 150 Amp ANL Fuse
- (2) 4GA Blue & Black 5/16" Ring Terminals
- (2) 4GA Blue & Black Spade Terminals
- (5) 16GA Blue & Black Spade Terminals
- (4) Pan Head Screws
- (10) Wire Ties
- General Features:
- 10" SWT Series Single 4-ohm Shallow Mount Truck Subwoofer
- Power Handling:
- Peak: 1,000 watts
- RMS: 350 watts
- Recommended Power Range: 100W - 350W
- Poly-Mica Dust Cap & Pulp-Kevlar
- Polyurethane Foam Surround
- H.A.M.R. Surround Technology
- Spiral Cut Aluminum Former
- 65mm Voice Coil with High-Temp 4-Layer SVC Winding
- 8AWG Push Terminals
- Top-mount depth: 4-3/16"
- Mounting Diameter: 8-15/16''
- Frequency Response: 30 - 200 Hz
- Sensitivity: 84.8 dB
- Dual 10" 2002-2013 Chevy Avalanche Sub Box
- Air Space: 0.70 Cubic Feet Per Sub
- Mounting Depth: 4"
- Sealed Enclosure
- Dimensions: Width 50-1/2" x Height 20-1/2" x Top Depth 1" x Bottom Depth 6-1/2"
- Constructed with High Quality MDF
- (2) High Quality Binding Terminal Cup (Accepts Banana Terminal Plugs OR Bare Wire 'up to 10GA')
- High Quality Black Carpet
- Enclosure installs behind rear seat in front of the midgate
- 2002-2013 Chevy Avalanche
- 2002-2013 Cadillac Escalade EXT
- This item is New
- 1-Year Manufacturer's Warranty
This Package Includes the Following Items:
Harmony Audio HA-A800.1 Car Stereo Class D Amp Mono 1600 Watt Subwoofer Amplifier - 1 Ohm Stable - Includes Bass Remote:
Specifications:
User Adjustable Settings:
Features:
Harmony Audio HA-AK4 Car Stereo Complete 4 Gauge 1800W Amp Amplifier Install Kit - Nickel:
Specifications:
Alpine SWT-10S4 Car Audio SWT Series Sub Single 4 Ohm 700W Shallow Subwoofer:
Chevy Avalanche 2002-2013 Custom Fit Sub Box Enclosure Dual 10":
Features:
