Harmony Audio HA-C104 Competition Loaded 10″ Sub 2000W Vented Sub Box & KXA8001
Description
Harmony Audio HA-C104 Competition Loaded 10" Sub 2000W Vented Sub Box & KXA8001
Specifications
Harmony Audio HA-C104 Competition Loaded 10" Sub 2000W Vented Sub Box & KXA8001
SKU: HA-CARBON-11
This Package Includes the Following Items:
- 1 x Custom Single 10" Vented Subwoofer Enclosure
- 1 x Harmony Audio HA-C104 Car Stereo Competition Carbon 10" Sub 2000W Dual 4 Ohm Subwoofer New
- 1 x Kicker KXA800.1 Car Audio Class D Sub Amp Amplifier 44KXA8001 - Limited Stock
- 1 x Harmony Audio HA-AK0 Car Stereo Complete 1/0 Gauge 3000W Amp Amplifier Install Kit - Nickel

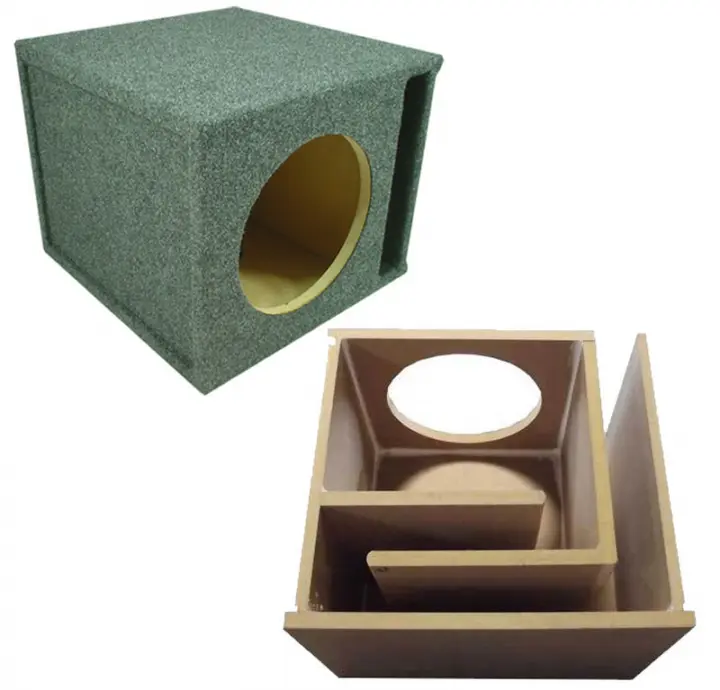

Custom Single 10" Vented Subwoofer Enclosure:
Features:- Single 10" Vented Sub Box
- Mounting Depth: 9-3/4"
- Air Space: 1.5 Cubic Feet
- Vented Enclosure
- Dimensions: Width 14-1/2" x Height 13-3/4" x Depth 16-3/4"
- Vented design allows for maximum output
- Constructed with High Quality MDF
- High Quality Binding Terminal Cup (Accepts Banana Terminal Plugs OR Bare Wire 'up to 10GA')
- High Quality Gray Carpet
Harmony Audio HA-C104 Car Stereo Competition Carbon 10" Sub 2000W Dual 4 Ohm Subwoofer New:
Specifications:
- 10" Carbon Series Car Subwoofer
- Power Handling:
- Peak: 2000 watts
- RMS: 1000 watts
- Sensitivity: 85.7dB
- Frequency Response: 45Hz-300Hz
- Mounting Depth: 6-5/8"
- Mounting Cutout Diameter: 9-5/16"
- Min Sealed Box Volume (Cubic Feet): 0.99
- Max Sealed Box Volume (Cubic Feet): 1.94
- Min Vented Box Volume (Cubic Feet): 1.4
- Max Vented Box Volume (Cubic Feet): 2.47
- Magnet Weight: 202 Ounces
- 2.5" Copper Voice Coil
- Dual 4 Ohm
Features:
- Fiber Lightweight Cone
- Stitched High Roll Foam Surround
- Tinsel Leads Woven into Spider
- Die-Cast Aluminum Basket
- High Flux Ferrite Magnet
Detailed Specifications:
- Voice Coil Diameter: 65.5mm
- Voice Coil Height: 50mm
- HE Magnetic Gap Height: 15mm
- Voice Coil Bobbin: Black Aluminum
- Xmax: 17.5mm
- Magnet Layers: 4
- Cms (Suspension Compliance): 0.108
- Qms (Mechanical Q Factor): 4.3
- Qes (Electrical Q Factor): 0.52
- Qts (Total Q Factor): 0.5
- Mms (Moving Mass): 211.4
- Vas (Equivalent Volume of Compliance): 10.3 L
- Rs (Resonant Frequency): 45 Hz
- SD (Effective Piston Area): 363.05 cm2
Kicker KXA800.1 Car Audio Class D Sub Amp Amplifier 44KXA8001 - Limited Stock:
- Class D Power Plant
- One-Ohm Stable
- SHOCwave™ Bass Restoration Processor
- KXARC Wireless Remote Included
- Gain Control With "Optimal Input" Indicator. Test tones available here!
- Variable 24dB Subsonic Filter
- FIT2™ (Fail-Safe Integration Technology) Circuitry
- Variable 24dB Crossover
- DSP-Controlled Preamp
- KickEQ+™ 18dB Variable Bass Boost
- Easy Access to Settings Behind Hinged Panel
- Black Anodized Aluminum Chassis
- Top-Mounted Red LED Light Pipe
- Power Handling
- RMS Power
- 400 Watts x 1 @ 4 Ohm (14.4V)
- 800 Watts x 1 @ 2 Ohm (14.4V)
- 800 Watts x 1 @ 1 Ohm (14.4V)
- Peak Power
- 800 Watts x 1 @ 4 Ohm (14.4V)
- 1600 Watts x 1 @ 2 Ohm (14.4V)
- 1600 Watts x 1 @ 1 Ohm (14.4V)
- RMS Power
- Frequency Response: 10Hz-160Hz
- Signal-to-Noise Ratio: 95dB
- Input Sensitivity: 250mV?ô?????10V
- Selectable Electronic Crossover: Variable Lo-pass 40Hz?ô?????160Hz, 24dB/octave
- Subsonic Filter: Variable 10?ô?????80Hz, 24dB/octave
- KickEQ Parametric Bass Boost: Boost - Variable 0-18db, Center Frequency - 20Hz-80Hz, Bandwidth 1-5
- CEA Power Rating: 400 x 1 @ 4 ohms, 14.4VDC, 1% THD, CEA-2006B (Watts)
- Remote Bass Knob: Included
- Dimensions:
- Length: 9-9/16"
- Height: 2-1/8"
- Width: 8-5/16"
Warranty Info:
- We are an Authorized Kicker Dealer.
- 1-Year Manufacturer's Warranty
- All Manufacturer Warranties are handled through HiFiSoundConnection (1-877-275-4434)
Harmony Audio HA-AK0 Car Stereo Complete 1/0 Gauge 3000W Amp Amplifier Install Kit - Nickel:
Specifications:
- 17FT Flexible Matte Blue 1/0GA Power Cable
- 3FT Flexible Matte Black 1/0GA Power Cable
- 20FT Flexible Matte Blue 16GA Speaker Wire
- 17FT Flexible Matte Gray & Black RCA Cable
- 17FT Flexible Matte Blue Remote Wire
- 6FT Split Loom
- ANL Fuse Holder
- 250 Amp ANL Fuse
- (2) 1/0GA Blue & Black 5/16" Ring Terminals
- (2) 1/0GA Blue & Black Spade Terminals
- (5) 16GA Blue & Black Spade Terminals
- (4) Pan Head Screws
- (10) Wire Ties
This item is Refurbished
HiFiSoundConnection Warranty: 1-Year
