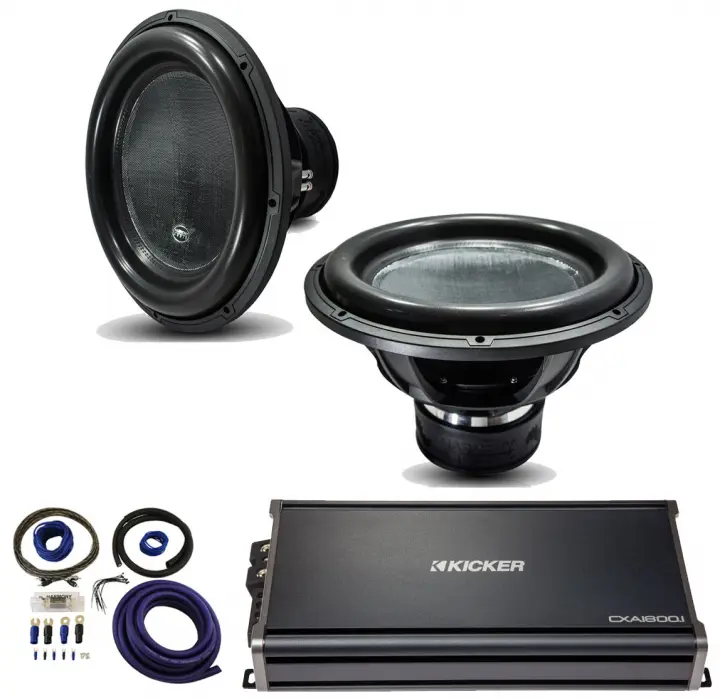

2x Harmony Audio HA-ML182 Competition SPL 18″ Sub Subwoofer & CXA1800.1 Amp
- 2x Harmony Audio HA-ML182 Competition SPL 18″ Sub Subwoofer & CXA1800.1 Amp
- SKU: HA-MONOLITH-36
- 2 x Harmony Audio HA-ML182 Monolith 18" Competition Sub 3500W Dual 2 Ohm Subwoofer
- 1 x Kicker 43CXA18001 Mono Amp CX Series CXA1800.1 Class D 1800-Watt Car Audio Subwoofer Amplifier - Limited Stock
- 1 x Harmony Audio HA-AK0 Car Stereo Complete 1/0 Gauge 3000W Amp Amplifier Install Kit - Nickel
- 18" Monolith Series Car Subwoofer
- Power Handling:
- Peak: 3500 watts
- RMS: 1750 watts
- Sensitivity: 88.4dB
- Frequency Response: 30Hz-300Hz
- Mounting Depth: 12"
- Mounting Cutout Diameter: 16-13/16"
- Min Sealed Box Volume (Cubic Feet): 3.88
- Max Sealed Box Volume (Cubic Feet): 7.24
- Min Vented Box Volume (Cubic Feet): 5.65
- Max Vented Box Volume (Cubic Feet): 7.77
- Magnet Weight: 306 Ounces
- 3" CCAW Voice Coil
- Dual 1 Ohm
- Competition Grade Paper Cone
- Stitched High Roll Foam Surround
- Tinsel Leads Woven into Spider
- Die-Cast Aluminum Basket
- High Flux Ferrite Magnet
- Voice Coil Diameter: 76.5mm
- Voice Coil Height: 64.7mm
- HE Magnetic Gap Height: 20mm
- Voice Coil Bobbin: Black Aluminum
- Xmax: 22.35mm
- Magnet Layers: 8
- Cms (Suspension Compliance): 0.041
- Qms (Mechanical Q Factor): 5.33
- Qes (Electrical Q Factor): 0.67
- Qts (Total Q Factor): 0.59
- Mms (Moving Mass): 570.4
- Vas (Equivalent Volume of Compliance): 80.6 L
- Rs (Resonant Frequency): 33 Hz
- SD (Effective Piston Area): 1164.1 cm2
- Kicker CX Series CXA1800.1
- Class-D 2-Ohm Stable Monoblock Amplifier
- RMS Power Rating:
- 4 ohms: 900 watts x 1 chan.
- 2 ohms: 1800 watts x 1 chan.
- Total power output: 3600 watts
- Pulse Width Modulated MOSFET power supply
- Kicker CXARC wired remote bass level control available and sold separately
- LED power (green) and protect (red) indicators
- Soft start turn-on
- Mono channel operation
- Speaker-level (high-level) inputs via RCA
- Requires Kicker KISL, available and sold separately
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dual speaker terminals simplify the hookup of multiple speakers
- Input sensitivity:
- Low level: 125mV-5V
- High level: 250mV-10V
- Frequency Response: 25 - 200Hz
- Signal to Noise Ration: >95dB
- Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
- Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
- Fixed Subsonic Filter @ 25hz, 24db/octave
- 1/0 gauge power and ground wiring is recommended for installation
- Dimensions: 7-3/16"W x 13-5/8"L x 2-3/8"H ?????º
- We are an Authorized Kicker Dealer.
- 90-Days Manufacturer's Warranty
- All Manufacturer Warranties are handled through HiFiSoundConnection (1-877-275-4434)
- 17FT Flexible Matte Blue 1/0GA Power Cable
- 3FT Flexible Matte Black 1/0GA Power Cable
- 20FT Flexible Matte Blue 16GA Speaker Wire
- 17FT Flexible Matte Gray & Black RCA Cable
- 17FT Flexible Matte Blue Remote Wire
- 6FT Split Loom
- ANL Fuse Holder
- 250 Amp ANL Fuse
- (2) 1/0GA Blue & Black 5/16" Ring Terminals
- (2) 1/0GA Blue & Black Spade Terminals
- (5) 16GA Blue & Black Spade Terminals
- (4) Pan Head Screws
- (10) Wire Ties
- This item is Refurbished
- 1-Year Manufacturer's Warranty
This Package Includes the Following Items:
Harmony Audio HA-ML182 Monolith 18" Competition Sub 3500W Dual 2 Ohm Subwoofer:
Specifications:
Features:
Detailed Specifications:
Kicker 43CXA18001 Mono Amp CX Series CXA1800.1 Class D 1800-Watt Car Audio Subwoofer Amplifier - Limited Stock:
This item is Factory Certified RefurbishedWarranty Info:
Harmony Audio HA-AK0 Car Stereo Complete 1/0 Gauge 3000W Amp Amplifier Install Kit - Nickel:
Specifications:
