Compatible with 2009-2014 Ford F-150 Extended Super Cab Truck Kicker 43CVT102 Dual 10″ Sub Box Enclosure & CX1200.1 Amplifier
Check out car audio packages that take the guess work out of trying to figure which products match up together and you get a great price at the same time! We have a huge range of packages to choose from in everything from amplifiers to car audio batteries. All packages have limited stock and will only be available until we sell out so be sure to act fast before they are gone.
| Also Included: | ||
| Service & Materials: | Value: | You Pay: |
| Speaker Wire: | $15.00 | $0.00 |
| Spade Terminals: | $5.00 | $0.00 |
| Subwoofer Installation*: | $45.00 | $0.00 |
| Shipping & Insurance**: | $45.00 | $0.00 |
| Totals: | $100.00 | $0.00 |
| *Price based on average 1-hour minimum labor rate. **Price based on 80 lb shipping weight. |
This Package Includes the Following Items:
- 1 x 2009-2014 Ford F150 Extended Super Cab Truck Dual 10" Custom Fit Sub Subwoofer Box Enclosure
- 2 x Kicker 43CVT102 10-inch Sub CompVT CVT10 400 Watt RMS 2 Ohm SVC Subwoofer
- 1 x Kicker 46CXA12001 Mono Amp CX Series CXA1200.1 Class D 1200-Watt Car Audio Subwoofer Amplifier
- 1 x Harmony Audio HA-AK0 Car Stereo Complete 1/0 Gauge 3000W Amp Amplifier Install Kit - Nickel

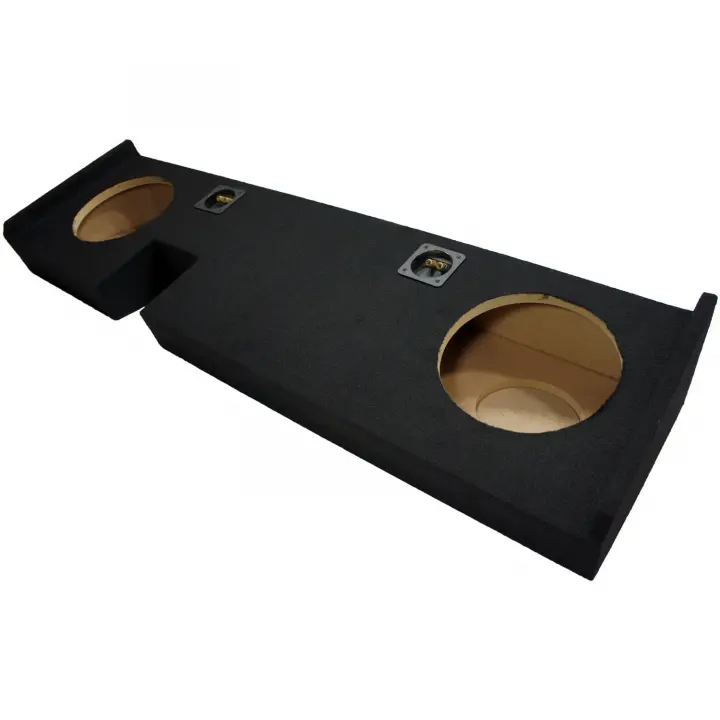

2009-2014 Ford F150 Extended Super Cab Truck Dual 10" Custom Fit Sub Subwoofer Box Enclosure
Features:
- Dual 10" 2009-2014 Ford F150 Extended Super Cab Truck Box
- Air Space: 0.8 Cubic Feet per Sub
- Mounting Depth: 5"
- Sealed Enclosure
- Dimensions: Width 50-1/2" x Front Height 5" x Rear Height 9" x Depth 14-1/4"
- Constructed with High Quality MDF
- High Quality Binding Terminal Cups (Accepts Banana Terminal Plugs OR Bare Wire 'up to 10GA')
- High Quality Black Carpet
- Fits under rear seat, factory amplifier must be moved if equipped
This box fits:
- 2009-2014 Ford F150 Extended Super Cab Truck
Kicker 43CVT102 10-inch Sub CompVT CVT10 400 Watt RMS 2 Ohm SVC Subwoofer
- Size: 10"
- Impedance: 2 Ohms SVC
- Power Watts: 800W Peak / 400W RMS
- Sensitivity: 87.2 dB
- Mounting Depth: 4-1/4"
- Mounting Diameter: 9-3/16"
- Min Sealed Box Vol: 0.8 cu.ft.
- Max Sealed Box Vol: 3 cu.ft.
- Min Vented Box Vol: 1.25 cu.ft.
- Max Vented Box Vol: 1.75 cu.ft.
Kicker 46CXA12001 Mono Amp CX Series CXA1200.1 Class D 1200-Watt Car Audio Subwoofer Amplifier - Limited Stock:
This item is Factory Certified Refurbished
- Kicker CX Series CXA12001.1
- Class-D 2-Ohm Stable Monoblock Amplifier
- RMS Power Rating:
- 4 ohms: 600 watts x 1 chan.
- 2 ohms: 1200 watts x 1 chan.
- Total power output: 2400 watts
- Pulse Width Modulated MOSFET power supply
- Kicker CXARC wired remote bass level control available and sold separately
- LED power (green) and protect (red) indicators
- Soft start turn-on
- Mono channel operation
- Speaker-level (high-level) inputs via RCA
- Requires Kicker KISL, available and sold separately
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dual speaker terminals simplify the hookup of multiple speakers
- Input sensitivity:
- Low level: 125mV-5V
- High level: 250mV-10V
- Frequency Response: 25 - 200Hz
- Signal to Noise Ration: >95dB
- Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
- Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
- Fixed Subsonic Filter @ 25hz, 24db/octave
- 4 gauge power and ground wiring is recommended for installation
- Dimensions: 7-3/16"W x 12-1/16"L x 2-3/8"H
Warranty Info:
- We are an Authorized Kicker Dealer.
- 1-Year Manufacturer's Warranty
- All Manufacturer Warranties are handled through HiFiSoundConnection (1-877-275-4434)
Harmony Audio HA-AK0 Car Stereo Complete 1/0 Gauge 3000W Amp Amplifier Install Kit - Nickel:
Specifications:
- 17FT Flexible Matte Blue 1/0GA Power Cable
- 3FT Flexible Matte Black 1/0GA Power Cable
- 20FT Flexible Matte Blue 16GA Speaker Wire
- 17FT Flexible Matte Gray & Black RCA Cable
- 17FT Flexible Matte Blue Remote Wire
- 6FT Split Loom
- ANL Fuse Holder
- 250 Amp ANL Fuse
- (2) 1/0GA Blue & Black 5/16" Ring Terminals
- (2) 1/0GA Blue & Black Spade Terminals
- (5) 16GA Blue & Black Spade Terminals
- (4) Pan Head Screws
- (10) Wire Ties
